- Weighs up to 30 pounds less than competitive signs – Minimizes live load on mast arms
- Single and double sided – High visibility from both directions
- Powder coated to your color specification – Matches most standard mast arms
- Very Low Maintenance – rated for 13 years of service before maintenance is required
- Wind and water tested to 110 MPH, physical – Meets stringent DOT requirements

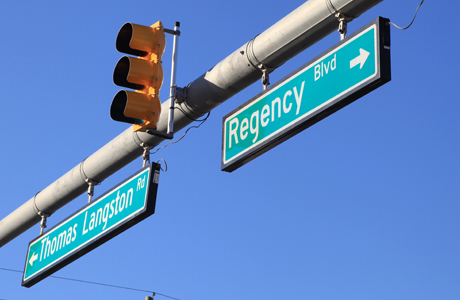

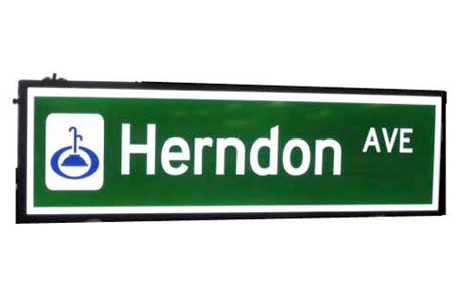

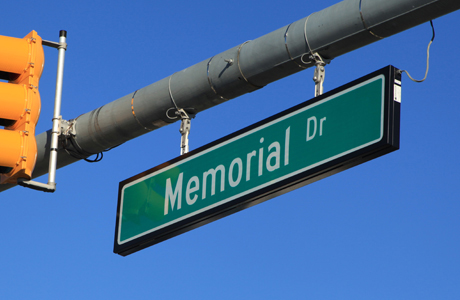

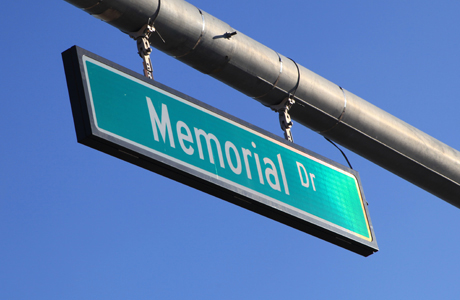

The "Clean Profile" LED Illuminated Street Name Sign
Clean Profile LED illuminated street name signs are a new, versatile, LED internally illuminated street name sign that incorporates Southern's hallmarks of easy maintenance, proven long life LED strips, into a thin, lightweight parallel sided body. The design allows this sign to be offered with viewable areas of true 4, 6, or 8 feet long and in heights of 12" to 24" in one-inch increments to accommodate fitment requirement and enhance the visibility of the sign. Available in both single and double side, sign height maximum is 20” on the double-sided models.
Communities across the country are planning to add internally illuminated street name signs to meet the new federally mandated visibility standards for traffic and highway safety.
Overcoming past concerns about weight and maintenance, this product’s design was driven by the customer input. Through the use of advanced optics, the Clean Profile street sign accomplishes the lightweight and low-maintenance objectives and further improves visibility with high-resolution optics that provide uniform light distribution.
Clean Profile LED signs weigh as much as 20 pounds less than our similar sized standard LED road signs and 30 pounds less than competitors’ edge-lit models. This street name sign provides the safety and visibility inherent in illuminated street name signs while minimizing the bearing load on mast arms or span wire."
The body is constructed of .125" thick 5052 aluminum in a standard finish of black powder coating, but other colors are available, including colors that match the most commonly used mast arms. The single-sided sign can be mounted either rigidly to a mast arm or free swinging. The single-sided sign is a mere 3 1/2" thick, and the double-faced edition, with hinged doors on both sides, measures 4 3/4" thick.
The "Clean Profile" sign has been extensively tested prior to introduction, including passing a physical 110-mile per hour wind and water test. The LED light strips have been cycle tested to simulate six years, and the Philips Rebel LEDs are rated at 60,000 hours by Philips at double the amperage of the Southern light engine. Thus, the expected life of the LEDs operating 12 hours per day on average is over 13 years. Should maintenance be required or the street renamed, lens can be changed in-service without any tools, and the internal components can be replaced using only common tools. The sign carries a limited 7 year warranty..
Download Clean Profile Documentation Sheets
To talk with a Southern representative please call us at (800) 866.5699 or email us at Southern Manufacturing. For sign inquiries, please contact one of our distibutors here
